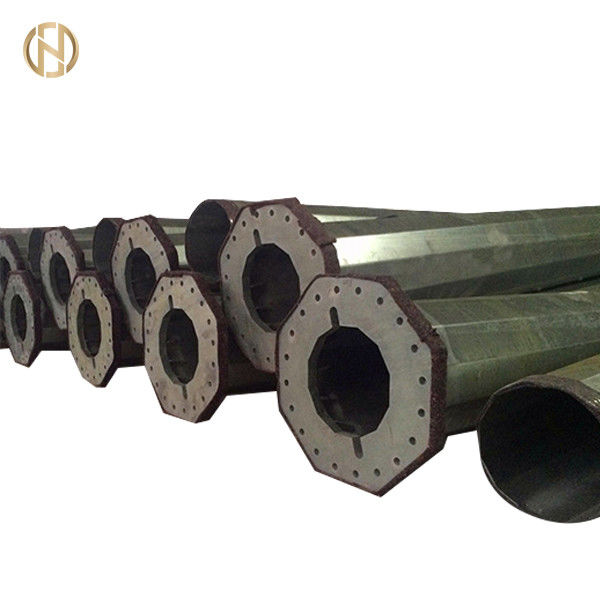

GR65 35FT Octagonal Steel Pole Weather Resistance

Brand Name:	FUTAO
Model Number:	10,5m -500dan
MOQ:	2 sztuki
Cena £:	$100 - $600
Delivery Time:	30 - 60 dni roboczych
Payment Terms:	L/C, T/T.

Detail Information

Product Description

Detail Information

Miejsce pochodzenia:

CHINY

Orzecznictwo:

ISO9001:2008

Wysokość:

10,5 mln

Grubość:

4 mm

Tworzywo:

Q235, Q345, Q420, Q460, GR50, GR60, SS400

Kształt:

Rurowy

Kolor:

Zgodnie z życzeniem klientów

Obróbka powierzchniowa:

Gorące dip ocynkowane

spawanie:

AWS D 1.1

Szczegóły pakowania:

40HC lub OT owinięte matą lub matą ze słomy

Możliwość Supply:

6000 sztuk co miesiąc

Podkreślić:

35FT Octagonal Steel Pole

GR65 Octagonal Steel Pole

GR65 Octagonal tubular pole

Product Description

10.5M 35FT Tubular Steel Pole500daN 5KN GR65ctagonal steel pole and structures

Product Description

The products above are 10.5M 35FT Tubular Steel Pole500daN 5KN GR65 octagonal steel pole and structures

made specifically for power distribution between 33kv

Products are designed and manufactured according to ANSI/TIA-222-G structural standards
Products are hot dip galvanized according to ISO 1461/ASTM A123 standards
Pole shaft material : ASTM 572 GR50 or equal
Material code : GB/T1591-2008,GB/T700-2006
We possess the ISO 9001:2015 certification and are committed to giving our customers the best products and service
We provide additional assistance if required including supervision and supplementary components
We accommodate various designs according to our customers’ specifications

To design in accordance with PLS software, we will require the following design parameters:

The operational wind speed of the region where the pole will be used
The Antenna load and height of the pole
The total height of the pole itself

Product Specifications

Type	10.5M 35FT Tubular Steel Pole500daN 5KN GR65 Octagonal Steel pole and structures
Suitable Uses	Power Distribution
Shape( Cross section)	Octagonal
Power grade	11kv
No of Section	One
Length (m)	8M-25FT
Foundation	Direct burial- 1.4M
Working Load	500daN
Breaking Load	750daN
Safety Factor	1.5
Material	ASTM 572 GR65 or Q460
Minimum Yield Strength	450 mpa
Minimum Ultimate Tensile Strength	550 mpa
Max Ultimate Tensile Strength	690mpa
EL %	>=15%
Top diameter(mm)	>=140
Bottom diameter(mm)	>=300
Min Thickness(mm)	>=4mm
Tolerance of Dimensions	+- 1%
Engraving	Name plate through rivet or glue ,engraving ,embossment as per customers’ requirements
Surface Treatment	Hot Dip Galvanization according to ASTM A123 standards/Powder Coating
Joint of Poles	Insert Mode, Inner Flange Mode, Face to Face Joint Mode.
Loading Conditions
Maximum line deviation	0-5 degree
Design Wind Speed (Extreme Wind)	32m/s
Circular Shape Factor	1.0
Maximum Deflection (Extreme Wind)	10% of overall pole length
Welding	Internal and external double welding process produces a seamless surface Welding Standard :AWS ( American Welding Society ) D 1.1

Packaging & Shipping

We cover the top and bottom parts of the pole with a mat or straw bale in order to protect it from damage to the galvanized surface that may occur during transportation. Packaging can also be done according to clients’ requirements.

Process of Production

Verification of Materials → Cutting → Molding or Bending → Vertical Welding → Verification of Dimensions → Flange Welding → Hole Drilling → Calibration→ Deburring Process → Galvanizing, Powder Coating or Painting → Recalibration → Threading → Packaging

GR65 35FT Octagonal Steel Pole Weather Resistance 0

FAQ

Q1. How can I get a price of needed pole?

A: 1. Please provide exact dimensions such as height, pole shaft material type and thickness, top and bottom diameters. We can then give you an accurate quotation based on your specifications.

2. You can send us a detail and assembly drawing; we can then provide you with an accurate quotation based on the drawing.

Q2. I am a small wholesaler; do you accept a small order?

A: It's not a problem if you are a small wholesaler; we accept orders of various quantities.

Q3. I am a designer; Can you help me to produce the sample which we designed?

A: Our mission is to help our customers be successful. We are more than happy to help you solve any problems that you may have.

Q4: We want be your agent for our area. How do I apply for this?

A: Please send your proposal and your company profile.

Q5. Tell me about your company?

We have been a manufacturer and exporter of all kinds of steel poles including power poles, street lighting poles, telecommunications poles and other steel based products since 2000. Our products have been exported to many regions around the world.

Q6. Do you have some special policies for Branded companies?

A: Yes, we have some special support for the company who has own brand but are also in our VIP customers list. Please send us a copy of your sales data so we can analyze the best course of action in supporting you for your products in your market.

Q7. Do you provide Door to Door service? Because i don't know how to deal with customs clearance.

A: We provide Door to Door service to help you reduce shipping time and costs. This is because we have additional discounts with the shipping companies as we have done many shipments in the past. This in turn will save you lots of time and money.

Our Service

1. We will reply all your enquiries in 24 working hours.

2. Experienced staff members will answer all your questions in fluent English.

3. Customized designs are available. UEM & UBM are welcome.

4. Exclusive and unique solutions can be provided to our customers by our well-trained and professional engineers and staff.
