Created with Pixso. Hydraulic Compression Dead End Clamp Malleable Iron And Aluminum Material

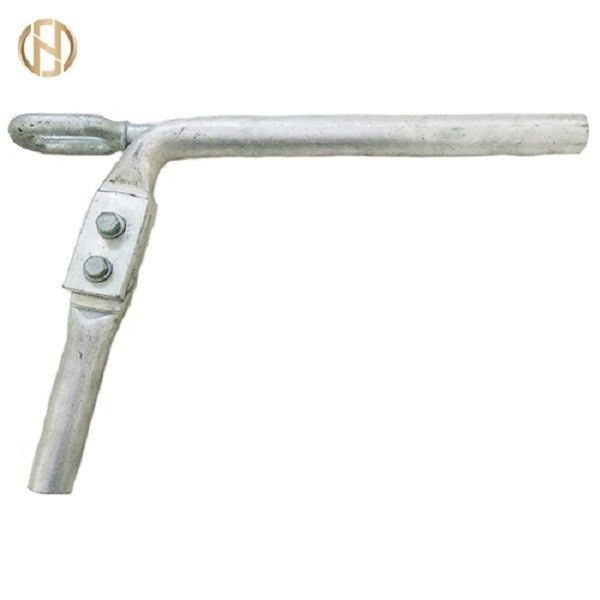

Hydraulic Compression Dead End Clamp Malleable Iron And Aluminum Material

Brand Name: FUTAO
Model Number: NY-95/15,1 do NY-400/95,1
MOQ: 10 sztuk
Cena £: $1 - $24
Delivery Time: 30 dni roboczych
Payment Terms: L/C, T/T.
Detail Information
Miejsce pochodzenia:
Jiangsu Chiny
Orzecznictwo:
ISO 9001
Model:
Od NY-95/15,1 do NY-400/95,1
Certyfikat:
Raport z audytu fabryki ISO9001 i SGS
Tworzywo:
żeliwo ciągliwe i aluminium
Kolor:
Srebrny
Stosowanie:
Napowietrzna linia przesyłowa
Zainstalować:
Łatwy
Szczegóły pakowania:
Opakowanie przy pudełku
Możliwość Supply:
6000 sztuk co miesiąc
Podkreślić:

power pole hardware

,

electric power fittings

Product Description

From NY-95/15.1 to NY-400/95.1 Type Hydraulic Compression Dead End Clamp






NY type hydraulic compression dead end clamp is used to fix & connect conductor onto the tension insulator string or the fittings on pole & tower through sustaining tensile force generated by the conductor.

It is made up of high-strength aluminum & steel materials, with clean surface & durable usage period; meanwhile it is easy for installation, free of hysteresis loss, low carbon & energy saving.


NY Type Hydraulic Compression Dead End Clamp



Type Applicable Conductor Dimension(mm) Holding Strength (kn)
D1 D2 D3 C L2
NY-95/15.1 LGJ-95/15 26 14 16 20 55 33.5
NY-95/20.1 LGJ-95/20 26 14 16 20 55 35.5
NY-120/20.1 LGJ-120/20 30 14 16 20 55 39.0
NY-120/50.1 LGJ-120/50 30 14 16 20 55 45.5
NY-150/20.1 LGJ-150/20 30 14 16 22 65 44.0
NY-150/25.1 LGJ-150/25 30 14 16 22 65 51.5
NY-150/35.1 LGJ-150/35 30 16 16 22 65 62.0
NY-185/25.1 LGJ-185/25 32 14 16 22 65 56.5
NY-185/30.1 LGJ-185/30 32 16 16 22 65 61.5
NY-185/45.1 LGJ-185/45 34 18 18 24 70 76.5
NY-240/30.1 LGJ-240/30 36 16 18 24 70 72.0
NY-240/40.1 LGJ-240/40 36 16 18 24 70 79.0
NY-240/55.1 LGJ-240/55 36 20 20 26 78 97.0
NY-300/15.1 LGJ-300/15 40 14 16 22 65 65.0
NY-300/20.1 LGJ-300/20 40 14 18 24 70 72.0
NY-300/25.1 LGJ-300/25 40 14 18 24 70 79.5
NY-300/40.1 LGJ-300/40 40 16 18 24 70 88.0
NY-300/50.1 LGJ-300/50 40 18 18 24 70 98.0
NY-300/70.1 LGJ-300/70 42 22 20 26 78 122.0
NY-400/20.1 LGJ-400/20 45 14 18 24 70 84.5
NY-400/25.1 LGJ-400/25 45 14 18 24 70 91.0
NY-400/35.1 LGJ-400/35 45 16 20 26 78 99.0
NY-400/50.1 LGJ-400/50 45 20 20 26 78 117.0
NY-400/65.1 LGJ-400/65 48 22 22 26 78 128.5
NY-400/95.1 LGJ-400/95 48 26 24 30 80 163.0
