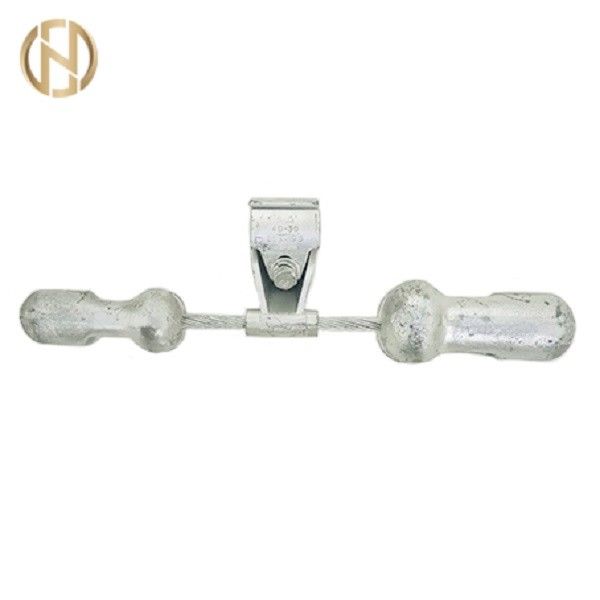

FR Series Stockbridge Vibration Damper pole accessories

Brand Name: Futao
Model Number: NLD
MOQ: 10 sztuk
Cena £: $1 - $16
Delivery Time: 30 dni roboczych
Payment Terms: L/C, T/T.
Detail Information
Miejsce pochodzenia:
CHINY
Orzecznictwo:
ISO9001
Tworzywo:
Milleble Iron
Numer modelu:
Od FR-1 do FR-6
Kolor:
Srebrny
Odpowiedni:
Linia przesyłowa
Szczegóły pakowania:
Opakowanie przy pudełku
Podkreślić:

power pole hardware

,

electric power fittings

Product Description



                  FR Series Stockbridge Vibration Damper pole accessories

Vibration damper makes use of rotation & swing of the two-end hammer heads for generating friction damping force from the mutual slippage among the galvanized iron wire strands to consume the swinged energy. It is adopted preformed rod structure in which the holding strength between the installation of vibration damper to preformed rods and the conductors evenly spread the distance from 30 to 60cm on the length area, effectively protecting the conductor by avoiding the stress concentration of the latter. It is of good slippage & antivibration performance as well as superior installation of preformed rods guarantee sustainable, stable & reliable holding strength between the performed rods & the conductors while its high efficient construction will be good for the convenient & reliable checkup.

Its inertia & spiral elasticity can make the damping component generate relative displacement on the conductor swing, consuming vibration energy by effecting viscous damping phenomenon. The more the conductor swings, the more vibration damper consumes energy. Its installation shall take priority on its antinode; as its resonant frequency matches with the vibration frequency of conductor, the energy vibration damper consumes will be up to its maximum value.





Type Applicable Conductor Diameter (Wrapped Object Included) (mm) Dimension (mm) Weight (kg)
D1 D2 A H L1 L2 L
FR-1 7.0~12.0 48 48 50 81 138 118 429 2.54
FR-3 11.0~20.0 48 48 50 81 138 118 429 2.61
FR-3 18.0~28.0 57 57 60 91 167 146 505 5.00
FR-4 26.0~36.0 64 64 60 97 218 163 550 6.00
FR-5 33~38 64 64 70 127 218 163 550 7.90
FR-6 36~40 74 74 70 127 325 325 650

11.00
