19M 3000daN 60FT Tubular Tapered Steel Pole Monopole Tower For Transmission Line

Brand Name:	Futao
Model Number:	19m -3000 daN
MOQ:	1 sztuki
Cena £:	$1000 - $6000
Delivery Time:	45 dni roboczych
Payment Terms:	L/C, T/T, Moneygram

Detail Information

Product Description

Detail Information

Miejsce pochodzenia:

CHINY

Orzecznictwo:

ISO9001:2008

Obróbka powierzchniowa:

Gorące dip ocynkowane

Wysokość:

19m

Grubość:

17 mm

Kolor:

szary kolor

Tworzywo:

Q235, Q345, Q420, Q460, GR50, GR60, SS400

Kształt:

Ośmioboczny

spawanie:

AWS D 1.1

Szczegóły pakowania:

40HC lub OT owinięte matą lub matą ze słomy

Możliwość Supply:

5000 sztuk co miesiąc

Podkreślić:

tubular steel post

steel tubular swaged pole

Product Description

19M 3000daN 60FT Tubular Steel Pole,Tapered steel pole,monopole tower

Product Description

The products above are 19M 3000daN 60FT Tubular Steel Pole,Tapered steel pole,monopole tower

made specifically for power distribution between 69kv

To design in accordance with PLS software, we will require the following design parameters:

The operational wind speed of the region where the pole will be used
The Antenna load and height of the pole
The total height of the pole itself

Product Specifications

Carbon (C), %	0.071/0.085	0.18 max	Passed
Manganese (Mn), %	1.223/1.235	1.8 max
Phosphorus (P), %	0.014/0.014	0.03 max
Sulfur (S), %	0.0067/0.0034	0.03 max
Silicon (Si), %	0.155/0.139	0.60 max
Niobium (Nb), %	0.016/0.015	0.11 max
Copper (Cu), %		--
Nickel (Ni), %		--
Chromium (Cr), %		--
Aluminum (Al), %		--
Columbium (Co), %		--
Vanadium (V), %		--
Titanium (Ti), %		--

Type	119M 3000daN 60FT Tubular Steel Pole,Tapered steel pole,monopole tower
Suitable Uses	Power Distribution
Shape( Cross section)	Octagonal
Power grade	69kv
No of Section	One
Length (m)	19M
Foundation	Direct burial- 2.5m
Working Load	3000daN
Breaking Load	6000daN
Safety Factor	2.0
Material	ASTM 572 GR65 or Q460
Minimum Yield Strength	450 mpa
Minimum Ultimate Tensile Strength	550 mpa
Max Ultimate Tensile Strength	690mpa
EL %	>=15%
Top diameter(mm)	>=320
Bottom diameter(mm)	>=600
Min Thickness(mm)	>=17.5 mm
Tolerance of Dimensions	+- 1%
Engraving	Name plate through rivet or glue ,engraving ,embossment as per customers’ requirements
Surface Treatment	Hot Dip Galvanization according to ASTM A123 standards/Powder Coating
Joint of Poles	Insert Mode, Inner Flange Mode, Face to Face Joint Mode.
Loading Conditions
Maximum line deviation	0-5 degree
Design Wind Speed (Extreme Wind)	32m/s
Circular Shape Factor	1.0
Maximum Deflection (Extreme Wind)	10% of overall pole length
Welding	Internal and external double welding process produces a seamless surface Welding Standard :AWS ( American Welding Society ) D 1.1

Packaging & Shipping

We cover the top and bottom parts of the pole with a mat or straw bale in order to protect it from damage to the galvanized surface that may occur during transportation. Packaging can also be done according to clients’ requirements.

Process of Production

Verification of Materials → Cutting → Molding or Bending → Vertical Welding → Verification of Dimensions → Flange Welding → Hole Drilling → Calibration→ Deburring Process → Galvanizing, Powder Coating or Painting → Recalibration → Threading → Packaging

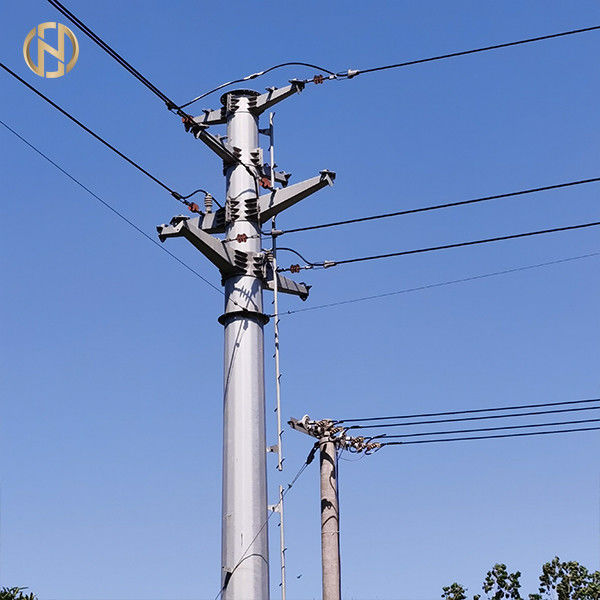

19M 3000daN 60FT Tubular Tapered Steel Pole Monopole Tower For Transmission Line 0

FAQ

Q1. How can I get a price of needed pole?

A: 1. Please provide exact dimensions such as height, pole shaft material type and thickness, top and bottom diameters. We can then give you an accurate quotation based on your specifications.

2. You can send us a detail and assembly drawing; we can then provide you with an accurate quotation based on the drawing.

Q2. I am a small wholesaler; do you accept a small order?

A: It's not a problem if you are a small wholesaler; we accept orders of various quantities.

Q3. I am a designer; Can you help me to produce the sample which we designed?

A: Our mission is to help our customers be successful. We are more than happy to help you solve any problems that you may have.

Q4: We want be your agent for our area. How do I apply for this?

A: Please send your proposal and your company profile.
