Black Painting Electrical Power Pole 10M 700daN Electric Utility Pole

Brand Name:	Futao
Model Number:	FTGG - 0 38 917
MOQ:	2 sztuki
Cena £:	$110 - $510
Delivery Time:	15 - 30 dni roboczych
Payment Terms:	L/C, T/T.

Detail Information

Product Description

Detail Information

Miejsce pochodzenia:

CHINY

Orzecznictwo:

ISO 9001 : 2008

Obróbka powierzchniowa:

Gorące dip ocynkowane

Kształt:

Wielokątny lub Stożkowy

Tworzywo:

Q345, ASTM 572 GR50

Grubość:

4 mm

spawanie:

AWS D 1.1

Wysokość:

10m

Kolor:

Czarny obraz

Szczegóły pakowania:

40HC lub OT, owinąć matą lub matą ze słomy

Możliwość Supply:

1200 sztuk tygodniowo

Podkreślić:

electric line pole

electric power post

Product Description

10m Steel Pole Metal Postes Electrical Power Pole 700daN Safety Factor 1.1

Product Description

Our electrical poles are specifically designed fo 10M STEEL POLE METAL POSTES ELECTRICAL POWER POLE ,1050daN Safety factor 1.1

We have successfully delivered our products to satisfied customers all around the world including Southeast Asia, the Middle East, and Europe. In addition, we can produce various types of poles depending on its usage such as suspension, tension and terminal/dead angle poles.

Specifical Details

TECHINCAL ASSESSMENT SCHEDULE SPECIEICATION NO.P24 10M GALVANIZED STEEL POLES

DESCRIPTION	UNIT	TENDERER'S DATA(TO BE INSERTED)
1) Manufacture Standards	---
2)Pole Parameters:
Length	mm	10000
Thickness of steel	mm	4
Cross-sectional shape		8-side
Steel Designation	ASTM number	ASTM A572-GR50
Ultimate Tensile Stress,fu	N/mm2	450
Yield Stress,fy	N/mm2	345
Max allowable design stress	fd=fy/(1.1)	1.1
Pole Top diameter	mm	200
Pole Bottom diameter	mm	400
Galvanize coating standard	---	ASTM 123
Galvanize coating thickness	---	AVE>=75um
3)Pole Top permanently covered	Yes/No	YES
4)Detachable base plate provided	Yes/No	YES
5)Plastic plugs to seal holes provided	Yes/No	YES
6)Polyurethane coating applied as specified	Yes/No	YES
7)Pole fitted with 900mm ground sleeve as specified	Yes/No	YES
8)Pole permanently marked as specified	Yes/No	YES
9)Poles packaged in open top containers	Yes/No	YES

Load details of 10m 700daN SF 1.1

%Load	Load(kg)	Act.Load(kg)	Time(min.)	Deflection(mm)	Recovery (mm)	Remarks
50%	350	355	1	300	12	Passed No signed of failfure or damage
70%	490	492	1	412	18
80%	560	565	1	525	23
90%	630	632	1	550	26
100%	700	705	1	580	30
110%	770	772	1	620	35

Additional Details

Design Code: American Standard ASCE/SEI 48-11

Design Software: PLS-POLES

Export Market Coverage: Asia-Pacific, Central & South America, Europe, Middle East, Africa

Testing Process: Loading Tests may be conducted on factory site if required

Process of Production

Verification of Materials → Cutting → Molding or Bending → Vertical Welding → Verification of Dimensions → Flange Welding → Hole Drilling→ Calibration → Deburring Process → Galvanizing, Powder Coating or Painting → Recalibration → Threading → Packaging

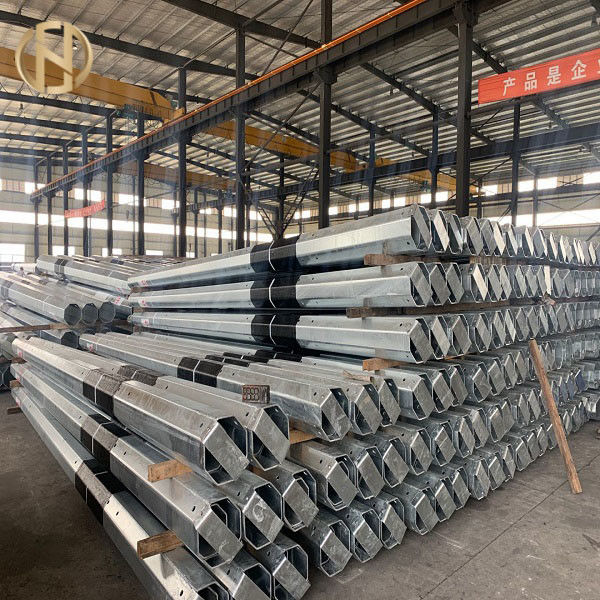

Black Painting Electrical Power Pole 10M 700daN Electric Utility Pole 0

Product Details

Black Painting Electrical Power Pole 10M 700daN Electric Utility Pole 1

Testing

Black Painting Electrical Power Pole 10M 700daN Electric Utility Pole 2

Packaging & Shipping

We cover the top and bottom parts of the pole with a mat or straw bale in order to protect it from damage to the galvanized surface that may occur during transportation. Packaging can also be done according to clients’ requirements.

Welcome to our factory!
