Outdoor Street Light Pole Q235 Hot Dip Galvanized / Powder Coated Surface

Brand Name:	Futao
Model Number:	LP-027
MOQ:	2
Cena £:	USD100-USD600
Delivery Time:	30 - 60 dni roboczych
Payment Terms:	L/C, T/T.

Detail Information

Product Description

Detail Information

Miejsce pochodzenia:

CHINY

Orzecznictwo:

FUTAO

Obróbka powierzchniowa:

Cynkowane ogniowo i malowane proszkowo

Tworzywo:

Q235B lub Q345B lub inne

Wysokość:

Zwyczaj

Grubość ściany:

3-20 mm

Kształt słupa:

Ośmioboczny

Norma spawalnicza:

AWS D 1.1

Kolor malarstwa:

Według numeru koloru RAL otrzymanego od klienta

Pakiet:

koc lub plastikowa tkana torba

Miejsce pochodzenia:

Jiangsu Chiny

Certyfikat:

SGS i ISO

Szczegóły pakowania:

stary koc lub plastikowa tkana torba

Możliwość Supply:

6000 szt. co miesiąc

Podkreślić:

galvanized light pole

highway light pole

Product Description

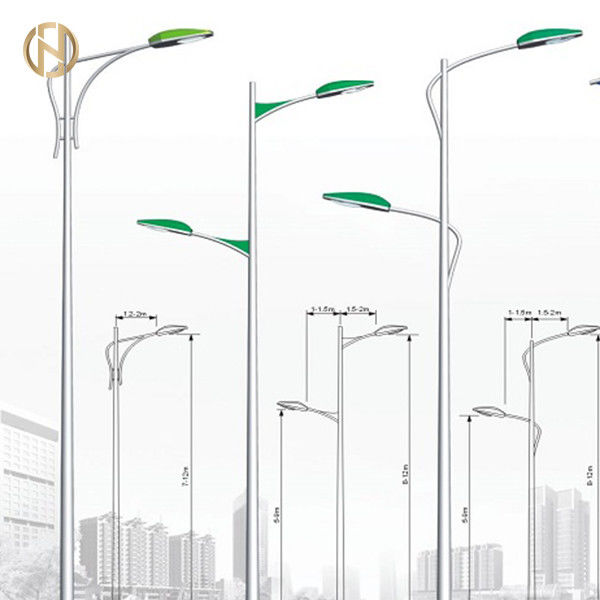

Outdoor Galvanized 3~30m Street Light Pole Q235 Street Lighting Pole Lamp Post Pole

Products are designed and manufactured according to the wind speed client provided
Products are hot dip galvanized according to ISO 1461/ASTM A123 or Bristish standards
Average galvanization thickness in bulk is about 85um.
Pole shaft material : Q235B or Q345B
Welding standard:AWS D 1.1
We possess the ISO 9001:2015 certification and are committed to giving our customers the best products and service
We provide additional assistance if required including supervision and supplementary components
We custom the poles according to our customers’ specifications

Product Specifications

Height	From 3 m to 30m
Apply in	Highway, freeway, Airport ,seaport,plaza,stadium,square,highway,street way etc
Shape	Conical, octagonal, square, cylinder
Material	Usually Q345B/A572, Q235B/A36, Q460 ,ASTM573 GR65, GR50 ,SS400, SS490, ST52
Lamp power	20 W- 400 W (HPS/MH) 220
Tolerance	± 2%
Optical assembly of lighting fixture	IP 65
Electroshock resistant protective grade	Grade one
The casing anti-corrosion performance	Class two
Working atmosphere of lighting fixture	-35 °C~+45 °C
Surface treatment	Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required.
Joint of Poles	Insert mode,inner flange mode,face to face joint mode
Design of pole	Against earthquake of 8 grade
Wind Speed	160 Km/Hour
Minimum ultimate tensile strength	490 mpa
Max ultimate tensile strength	620 mpa
Standard	ISO 9001
Length of per section	Within 12m once forming without slip joint
Welding	We has past flaw testing.Internal and external double welding makes the welding beautiful in shape Welding Standard :AWS ( American Welding Society ) D 1.1

Packaging & Shipping

We pack the top and bottom parts of the pole with an old blanket in order to protect it from damage to the galvanized surface that may occur during transportation.

Packaging can also be done according to clients’ requirements,such as plastic bubbles or with wooden stick between each layer.

Process of Production

Verification of Materials → Cutting → Molding or Bending → Vertical Welding → Verification of Dimensions → Flange Welding → Hole Drilling → Calibration→ Deburring Process → Galvanizing, Powder Coating or Painting → Recalibration → Threading → Packaging

Outdoor Street Light Pole Q235 Hot Dip Galvanized / Powder Coated Surface 0

Outdoor Street Light Pole Q235 Hot Dip Galvanized / Powder Coated Surface 1

Our Service

1. Reply your inquiry in 12 working hours.
2. Experienced staffs answer all your questions in fluent English quickly.
3. We have professional engineers to design the poles for clients.UEM&UBM are welcomed.
4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
5. Special discount and protection of sales are provided to our distributor.
6. Professional factory: We are manufacturer, specializing in producing all kinds of steel poles for more than 20 years, competitive with good quantity.
7. Sample time: about 10 workdays after receiving the sample fees.

Welcome to our factory!
