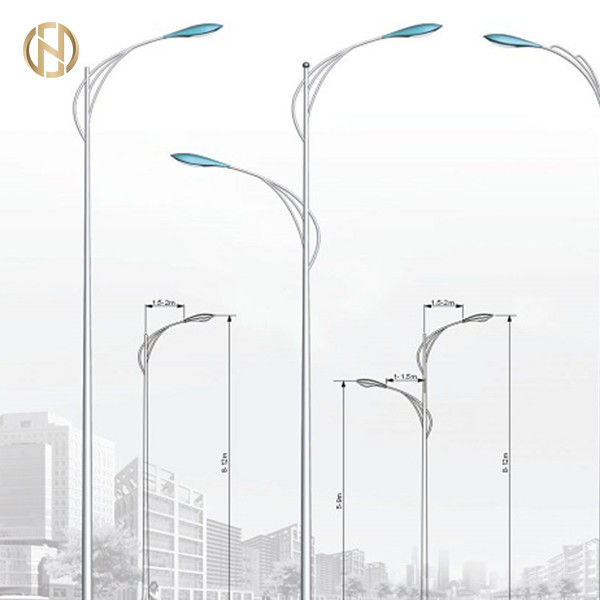

High Precision Street Lamp Pole 6 - 12M Height With Various Design

Brand Name:	FUTAO
Model Number:	LP-018
MOQ:	2 sztuki
Cena £:	$80 - $1000/piece
Delivery Time:	30 - 60 dni roboczych
Payment Terms:	L/C, T/T.

Detail Information

Product Description

Detail Information

Miejsce pochodzenia:

CHINY

Orzecznictwo:

ISO 9001

Wysokość:

6m - 12m

Długość ramienia:

1m - 2m

Grubość:

2 mm - 30 mm

Rodzaj ramienia:

Pojedyncze ramię, bliźniacze ramiona

Tworzywo:

Q345B/A572, Q235B/A36, Q460, ASTM573, GR65, GR50, SS400, SS490, ST52

Kształt:

Stożkowy / wielokątny

Moc lampy:

20 w - 400 w HPS/MH lub LED

Moc:

220 V (+-10%)/50 Hz

Szczegóły pakowania:

40HC lub OT, owinąć matą lub matą ze słomy

Możliwość Supply:

1200 sztuk miesięcznie

Podkreślić:

galvanized light pole

highway light pole

Product Description

6 - 12M Street Light Pole With Various Design,Steel Light Pole,Lamp Post

Product Description

Our street lighting poles can be customized in various ways according to our clients’ requests. This includes pole length, spray painted colour, shape of the pole shaft, number and style of cross arms. Please refer to the table below for further details.

Specific Details

Height	12m
Length of Arm	1m - 2m
Thickness	2mm - 30mm
Material	Q345/ A572, Q235B/ A36, Q460, ASTM573, GR65, GR50, SS400, SS490, ST52
Shape	Conical/ Polygonal
Wattage of Lamp	20w -400w HPS/ MH or LED
Power	220V (+ - 10%)/ 50Hz
Dimension Tolerances	+- 2%
IP Rating	IP 65
Protection Grade	Grade One
Anti-corrosion Grading	Class Two
Working Conditions for Lighting Fixture	-35 °C to +45 °C
Surface treatment	Hot Dip Galvanized according to ASTM A123 or any other standards as per clients' request
Earthquake Resistance	Against earthquake of grade 8
Wind Resistance	Against wind of 160 km/h
Minimum Yield Strength	355 mpa
Min to Max Tensile Strength	490 mpa - 620 mpa
Standard	ISO 9001
Welding	AWS (American Welding Society ) D1.1

High Precision Street Lamp Pole 6 - 12M Height With Various Design 0

Production Flow

Verification of Materials → Cutting → Molding or Bending → Vertical Welding → Verification of Dimensions → Flange Welding → Hole Drilling → Calibration → Deburr Process → Galvanizing, Powder Coating or Painting → Recalibration → Threading → Packaging

High Precision Street Lamp Pole 6 - 12M Height With Various Design 2

Packaging & Shipping

We cover the top and bottom parts of the pole with a mat or straw bale in order to protect it from damage to the galvanized surface that may occur during transportation. Packaging can also be done according to clients’ requirements.
