12M 14M Tubular Electric Power Pole Wind Resistant With ISO 9001 Certification

Brand Name:	FUTAO
Model Number:	12m-800 daN
MOQ:	10 sztuk
Cena £:	$100 - $400
Delivery Time:	15 - 30 dni roboczych
Payment Terms:	L/C, T/T.

Detail Information

Product Description

Detail Information

Miejsce pochodzenia:

CHINY

Orzecznictwo:

ISO 9001 : 2008

Wysokość:

12m

Grubość:

3 mm

Tworzywo:

Q235, Q345, Q420, Q460, Gr 50, Gr60, SS400 itp.

Kształt:

Wielokątny lub Stożkowy

Kolor:

Zgodnie z wymaganiami klientów

Obróbka powierzchniowa:

Gorące dip ocynkowane

spawanie:

AWS D 1.1

Szczegóły pakowania:

40HC lub OT, owinąć matą lub matą ze słomy

Możliwość Supply:

1200 sztuk tygodniowo

Podkreślić:

electric line pole

electric power post

Product Description

12M 14M Electrical power pole ,tubular pole, metal post,metal poles , power pole electrical Dominica market
Product Description

Our electrical poles are specifically designed for 12M 14M Electrical power pole ,tubular pole, metal post,metal poles , power pole electrical power transmission lines for Panama, We have successfully delivered our products to satisfied customers all around the world including Southeast Asia, the Middle East, and Europe. In addition, we can produce various types of poles depending on its usage such as suspension, tension and terminal/dead angle poles.

Specific Details

Product Name	12M 14M Electrical power pole ,tubular pole, metal post,metal poles , MCH-800-12
Type	Suspension Pole 33KV
Height	12M 14M
Thickness	>=4MM
Shape	Polygonal or Conical 8Side
Surface Treatment	Hot Dip Galvanized according to ASTM A123 standard or any other standards according to clients' request
Color	Any, According to clients' request
Ground Mounted	build type
Voltage	33kv
Material	Q235, Q345, Q420, Q460, Gr 50, Gr60, SS400, etc.
Welding	Welding complies with AWS D1.1 standard CO²welding or Submerged Arc Auto methods No scarring, craters, spatters, distortions, defects of any kind due to welding errors Unique Internal and External Welding method that allows for a smoother surface Additional welding requirments can be made as per clients' request
Life Expectancy	More than 25 years depending on various environmental factors
Qualification	ISO9001-2015, AAA Credit Rating
Wind Resistance	160 km/h
Earthquake Resistance	Against earthquake of grade 8

1. Material test result

C1. Mechanical Test	Measured	Standard	Passed
Yield Strength, MPa	755/725	450 min	Passed
Tensile Strength, MPa	810/785	550 min
Elongation, %	20/20	15% min
C2. Chemical Test	Measured	Standard	Remarks
Carbon (C), %	0.063 / 0.064 / 0.065 (AVE = 0.064)	0.23 max	Passed
Manganese (Mn), %	1.52 / 1.52 / 1.51 (AVE = 1.517)	0.5 - 1.65
Phosphorus (P), %	0.011 / 0.013 / 0.012 (AVE = 0.012)	0.04 max
Sulfur (S), %	0.0051 / 0.006 / 0.0053 (AVE = 0.006)	0.05 max
Silicon (Si), %	0.17 / 0.17 / 0.171 (AVE = 0.171)	0.04 - 0.06 / 0.12 - 0.25
Copper (Cu), %	0.224 / 0.224 / 0.222 (AVE = 0.224)	0.20 min
Nickel (Ni), %		--
Chromium (Cr), %		--
Niobium (Nb), %		--
Aluminum (Al), %		--
Columbium (Co), %		--
Vanadium (V), %		--
Titanium (Ti), %		--

Additional Details

Design Code: American Standard ASCE/SEI 48-11
Design Software: PLS-POLES
Export Market Coverage: Asia-Pacific, Central & South America, Europe, Middle East, Africa
Testing Process: Loading Tests may be conducted on factory site if required

Process of Production

Verification of Materials → Cutting → Molding or Bending → Vertical Welding → Verification of Dimensions → Flange Welding → Hole Drilling→ Calibration → Deburring Process → Galvanizing, Powder Coating or Painting → Recalibration → Threading → Packaging

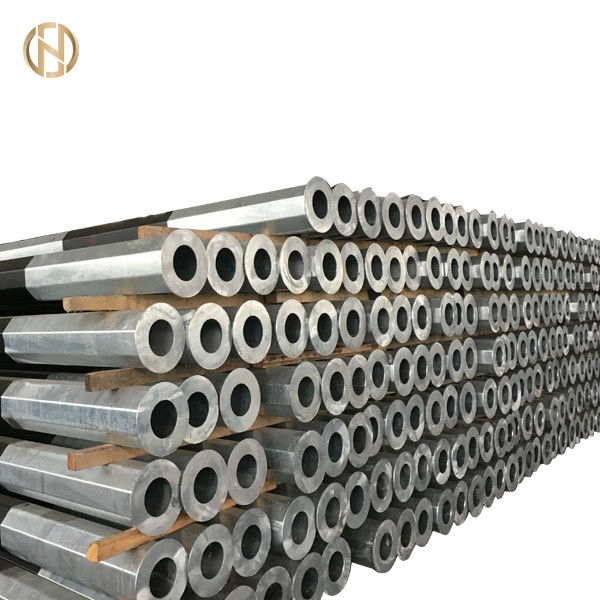

12M 14M Tubular Electric Power Pole Wind Resistant With ISO 9001 Certification 0
Product Details

12M 14M Tubular Electric Power Pole Wind Resistant With ISO 9001 Certification 1

Testing

12M 14M Tubular Electric Power Pole Wind Resistant With ISO 9001 Certification 2
Packaging & Shipping

We cover the top and bottom parts of the pole with a mat or straw bale in order to protect it from damage to the galvanized surface that may occur during transportation. Packaging can also be done according to clients’ requirements.
